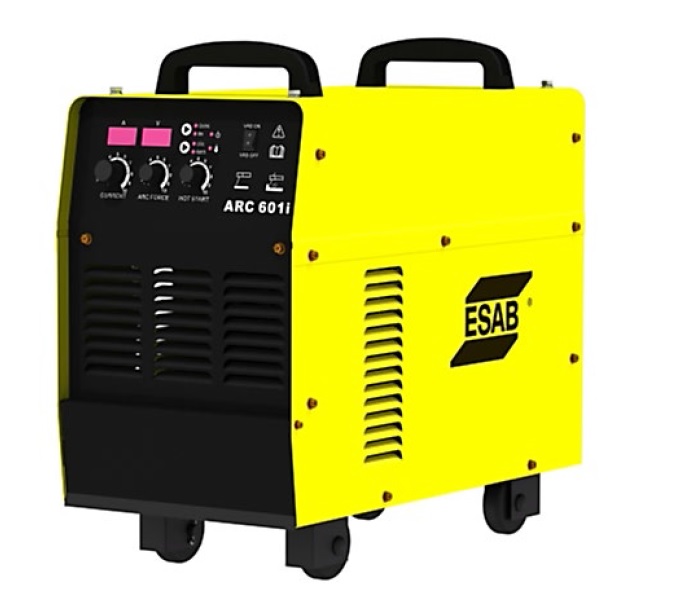

Powerful Inverter for MMA Welding
Arc 601i is an IGBT based inverter-controlled power source with robust and reliable design for MMA welding and Arc Gouging. The machine combines very heavy-duty cycle with a compact design for flexible working.
Key Features:

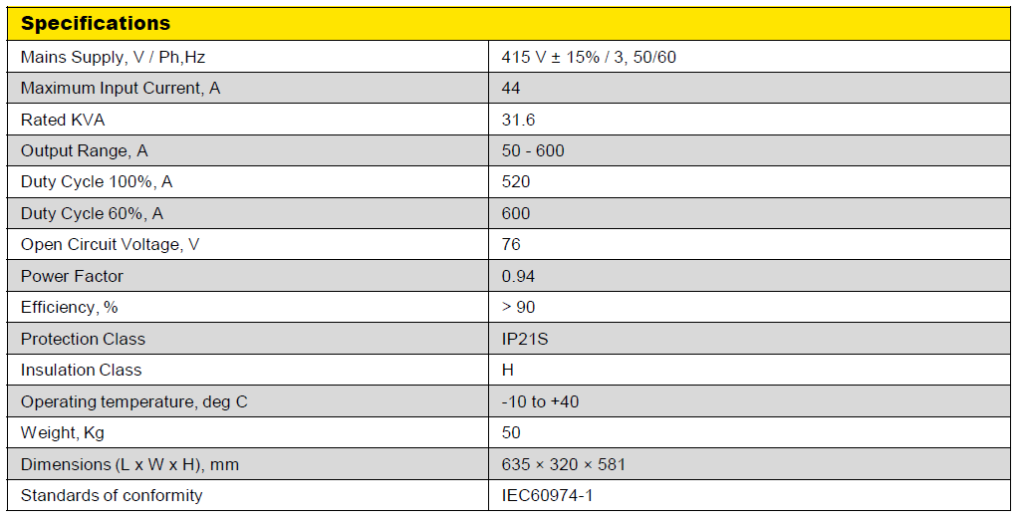

Technical Specifications:
- Mains Supply: 415 V, 3 Ph, 50-60 Hz
- Maximum Input Current: 44 A
- Rated KVA: 31.6
- Output Range: 50-600 A
- Duty Cycle @ 100%: 520 A
- Duty Cycle @ 60%: 600 A
- Open Circuit Voltage: 76 V
- Power Factor: 0.94
- Efficiency: 90%
- Protection Class: IP21S
- Insulation Class: H
- Operating Temperature: -10 to 40°C
- Weight: 50 Kg
- Dimensions (L x W x H): 635 x 320 x 581 mm
- Standards of Conformity: IEC60974-1
