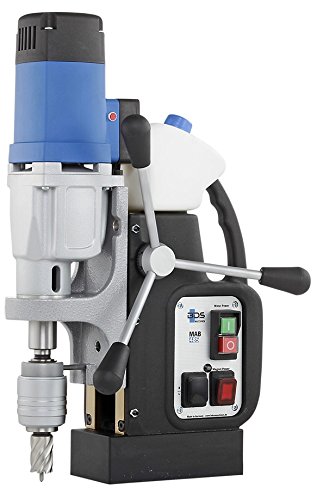

ProfiPLUS class compact magnetic drilling cum tapping machine for workshop and on-site jobs. Suitable for core drilling, twist drilling, countersinking, reaming and thread cutting up to M16.
Key Advantages
Continuous electronic control of motor output and speed
Two-stage gearbox in oil bath for non-destructive power transmission
CW/CCW rotation with torque control and full-wave control electronics
Permanent internal lubrication with carbon brush wear control
Magnet indicator and overheating protection
Technical Specifications
Motor output: 1150 W
Voltage: 230 V AC, 50–60 Hz (also 110/125 V variant)
Stroke: 160 mm
Core drilling: 12–40 mm (30/55 mm depth)
Twist drilling: up to 18 mm
Reaming: up to 18 mm
Countersinking: up to 40 mm
Thread cutting: up to M16
Magnet size: 84 × 168 × 41.5 mm
Weight: 13 kg
Quick change drill chuck: KEYLESS, 19 mm Weldon (3/4″), Morse taper MT2
2 speed ranges: 50–250 and 100–450 min⁻¹
Scope of Supply
Magnetic core drilling machine MAB 485
KEYLESS 19 mm Weldon quick-change drill chuck system
Tapping adapters ZGA 010, ZGA 012, ZGA 016
Ejector pins ZAK 075 and ZAK 100
Hard protective case with safety chain
Drill drift MT2
Gear rim drill chuck 1–13 mm
Taper drift MT2/B16
Operating manual
