Plasma and PUG cutting machines, regulators for every gas, blowpipes, flashback arrestors and hose. BIS certified throughout.
Cutting machines
| Model | What it is | Capacity | Supply | Key figures | Weight | |
|---|---|---|---|---|---|---|
| PC-121 | Portable manual plasma, IGBT inverter | MS, SS and aluminium to 25 mm | 415 V, 3 ph | 30–120 A · 23 kVA · 60% duty at 120 A, 100% at 93 A · air 4–6 bar | 33 kg | PDFQuote |
| PUG Pro | Dual torch tractor-type portable cutting machine | Cuts to 200 mm · bevel 0–45° | 220 V, 50 Hz | Track 1.8 m · cut width 80–320 mm · speed 80–800 mm/min · nozzle mix | 12 kg | PDFQuote |
| PUG | Single torch tractor-type portable cutting machine | Square to 75 mm · bevel to 50 mm at 45° · circles 75–1140 mm | — | 190–800 mm/min · IMC-3 injector cutter · rotary speed control · 1/4" BSP RH & LH | — | PDFQuote |
| PUG NM | Single torch tractor-type portable cutting machine | Square to 100 mm · bevel to 75 mm at 45° · circles 75–1140 mm | — | 190–800 mm/min · NM-type cutter · rotary speed control · 1/4" BSP RH & LH | — | PDFQuote |
Gas regulators — single stage, multi-stage and speciality gas.
| Model | Type | Gas | Max inlet | Notes | |
|---|---|---|---|---|---|
| IOX 13B | Single stage | Oxygen | 230 bar | Max outlet 10 bar · flow to 1000 LPM · 5/8 BSP RH M in, 3/8 BSP RH M out | PDFQuote |
| IDA 4B | Single stage | Acetylene | — | Forged body, Zn alloy bonnet, self-resetting safety relief valve · BIS | PDFQuote |
| IAR-53B | Single stage | Argon & Ar-CO₂ | 230 bar | Flow to 25 LPM · for MIG and TIG · forged brass, sintered filter · IS3224 inlet | PDFQuote |
| IOX 63B | Multi stage | Oxygen | 200 bar | Outlet to 10 bar · flow to 1000 LPM · gauges 0–400 / 0–16 bar · 5/8 BSP RH M in, 3/8 BSP RH M out · BIS certified | PDFQuote |
| Dura series | Two stage | Oxygen, acetylene, nitrogen, hydrogen, CO₂, argon | 230 bar | Constant delivery pressure as the cylinder empties · forged brass with stainless diaphragm rated to 300 bar · O-10 to 1000 LPM · BIS certified | PDFQuote |
| GA 600 | Multi-stage, high pressure & high flow | Industrial | — | Largest flow in class · full brass, finned body · accurate control through the whole cylinder | PDFQuote |
| Tech Master GPS420 | Single stage piston, HP & high flow | Technical grade to 99.995% | — | Cylinder or manifold mounting · −20 to +60 °C · Cv 0.1 · SS316L filter | PDFQuote |
| ISG 43 Series | Multi-stage, stainless steel | Speciality gas to grade 5.5 | — | SS body, Teflon-lined SS316L diaphragm · helium leak tested against diffusion | PDFQuote |
Blowpipes, safety and hose
| Product | Range | What matters | |
|---|---|---|---|
| Cutting blowpipes | ANM & A Type (acetylene) · PNM & Coolex (propane) · Cutogen 5 · NM 250 / NM 400 | Injector and nozzle-mix designs · forged brass body and angle head · non-turbulent nozzles for clean cuts with minimal kerf loss · all BIS certified | PDFQuote |
| CA444 combination blowpipe | WH443 handle · cutting attachment · welding mixer · acetylene heating tips | One torch for cutting, heating and welding · Zamak handle, forged body and head, stainless steel valves | PDFQuote |
| Flashback arrestors | PROTEX RA · PROTEX RO · FRT G3/8 · FT G3/8 · FR 18 G3/8 · FRDX5 | Non-return valve, flame arrestor, thermal cut-off and pressure cut-off · large sinter filters arrest the flame without choking flow · EN-ISO and BAM compliant | PDFQuote |
| Dura Hose | Gas-specific colour coded, welding and oxy-fuel cutting | Black synthetic elastomer core · high tensile polyester yarn reinforcement · flame retardant cover · kink and crush resistant | PDFQuote |
Flashback arrestors are not optional. A flashback travelling back into a cylinder is the single most dangerous failure in oxy-fuel work. Fit them at both the torch and the regulator, and replace them on the manufacturer's schedule — not when they fail. Ask us to check your set-up →
| Part | ESAB item code | Rating | Pack | |
|---|---|---|---|---|

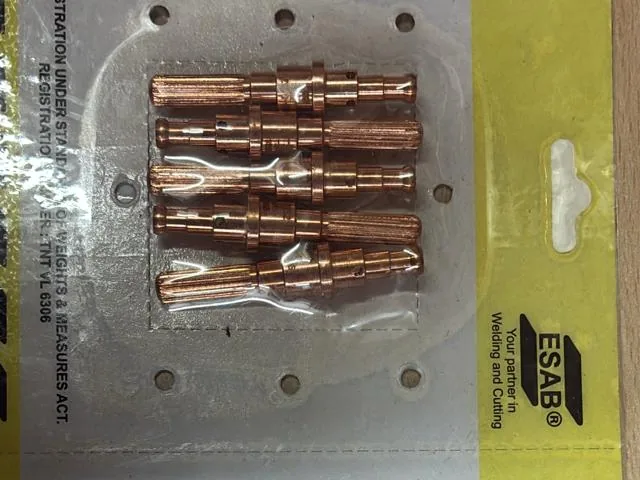

| Electrode 40/100 A (9-8215) | 0000098215 | 40–100 A | 5 | Ask on WhatsApp |

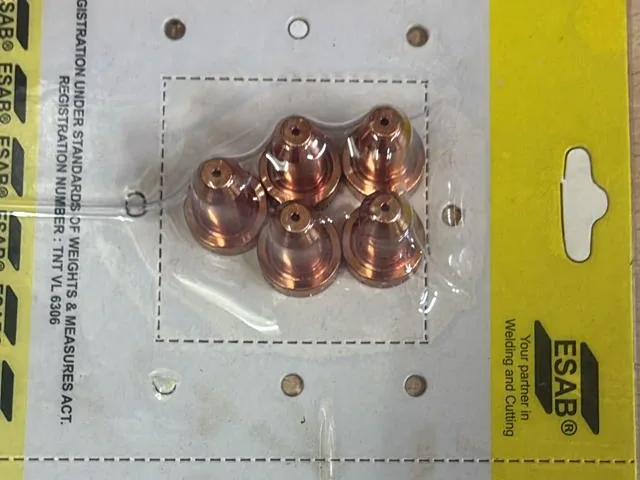

| Tip, standoff 90–100 A (9-8212) | 0000098212 | 90–100 A | 5 | Ask on WhatsApp |

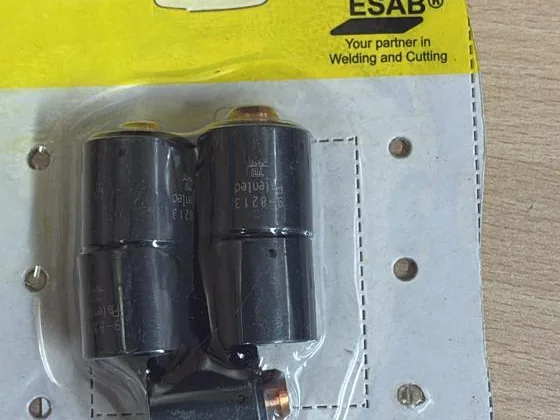

| Start cartridge 40/100 A (9-8213) | 0000098213 | 40–100 A | 5 | Ask on WhatsApp |

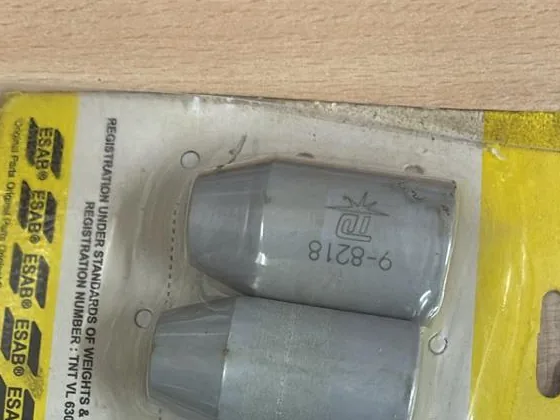

| Shield cup 40/100 A (9-8218) | 0000098218 | 40–100 A | 1 | Ask on WhatsApp |

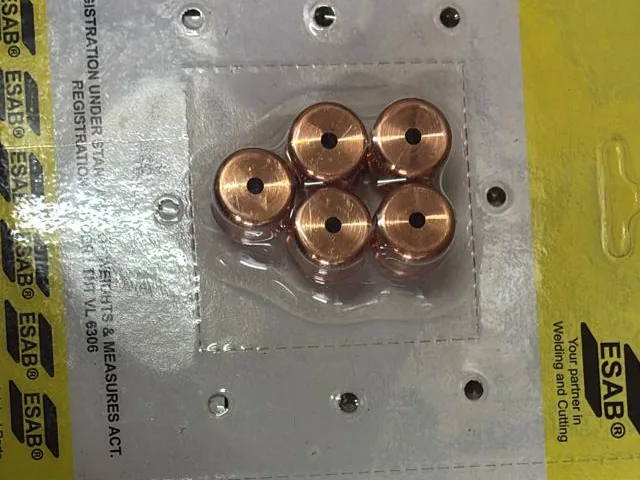

| Shield cap MECH 70–100 A (MKD-S) | 0000098239 | 70–100 A | 5 | Ask on WhatsApp |
Why genuine matters. Duplicate tips and electrodes are cheaper by the piece but wear out faster, give a wider, dirtier kerf and can damage the torch head. Every ESAB India pack carries a hologram seal and a printed item code — check for both. Not sure which part you need? Send us a photo of your worn part on WhatsApp.

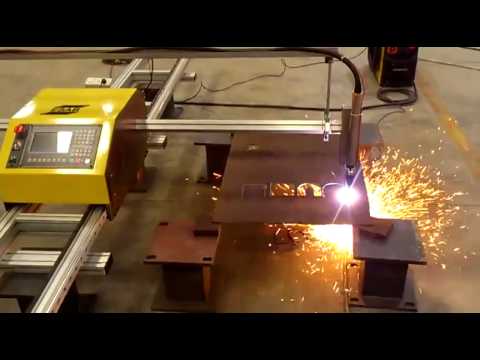

Our own footage, filmed on the shop floor at Paschim Vihar and on customer sites — not manufacturer marketing. Nothing loads from YouTube until you press play.
More machines at work on our channel: youtube.com/@arcweldingcom
Material, thickness, quantity and delivery location are all we need to begin. We represent seven authorised brands, so the recommendation you receive is the one the job calls for.
